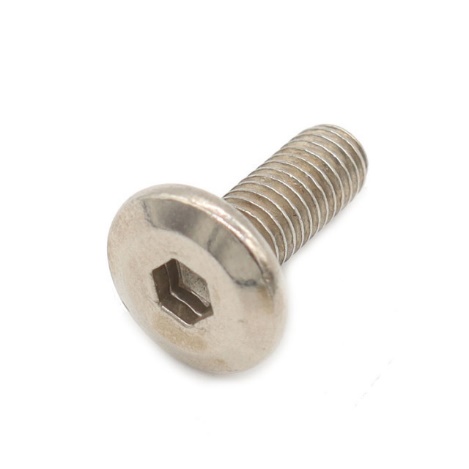

Flat head hexagon socket screw
Description
Material：Carbon Steel，SS304/316
Thread Size: M3-M24
surface finish: plain，black，galvanized，copper plating,H,D,G, Self Color
Specification
Size | d mix | k max | k max | Driver size | type mix | Phi max | q type mix | Poz max |
M1.6 | 2.75 | 3.00 | 0.96 | 0 | 0.66 | 0.91 | 0.8g | 1.14 |
M2 | 3.5C | 3.80 | 1.20 | 1 | 0.95 | 1.25 | 0.92 | 1.17 |
M2.5 | 4.40 | 4.70 | 1.50 | 1.25 | 1.55 | 1.22 | 1.47 | |
M3 | 5.30 | 5.60 | 1.65 | 1.50 | 1.80 | 1.48 | 1.73 | |
M3.5 | 6.14 | 6.50 | 1.93 | 2 | 1.40 | 1.90 | 1.34 | 1.80 |
M4 | 7.14 | 7.50 | 2.20 | 1.90 | 2.40 | 1.60 | 2.06 | |
M5 | 8.84 | 9.20 | 2.50 | 2.10 | 2.60 | 2.05 | 2.51 | |
M6 | 10.57 | 11.00 | 3.00 | 3 | 2.80 | 3.30 | 2.46 | 2.92 |
M8 | 14.07 | 14.50 | 4.00 | 4 | 3.90 | 4.40 | 3.86 | 4.32 |
M10 | 17.57 | 18.00 | 5.00 | 4.80 | 5.30 | 4.77 | 5.23 |
