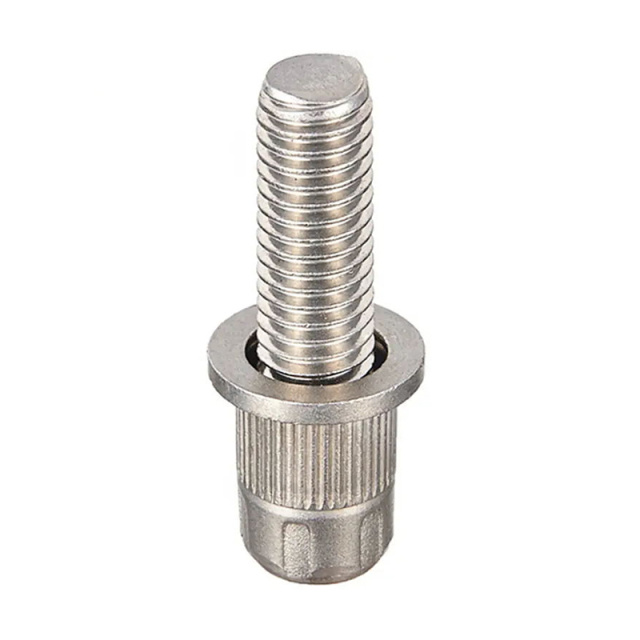

Description
Material：Carbon Steel，SS304/316
Thread Size: M4-M8
surface finish: plain，black，galvanized，copper plating
Specification
d | S | d0 | D | Flange diameter | HH | L | L2 | L1 | |
M4 | 0.5-1.9 | 6.0 | 5.95 | 8.5 | 0.8 | 11.0 | 8.0 | 10.0 | 15.0 |
2.0-2.9 | 12.0 | 10.0 | 15.0 | ||||||
M5 | 0.5-1.9 | 7.0 | 6.95 | 10.0 | 1.0 | 12.0 | 9.0 | 10.0 | 15.0 |
2.0-3.4 | 14.0 | 10.0 | 15.0 | ||||||
M6 | 0.5-2.4 | 9.0 | 8.95 | 12.0 | 1.3 | 13.0 | 9.5 | 10.0 | 20.0 |
2.5-3.9 | 16.0 | 10.0 | 20.0 | ||||||
M8 | 0.5-2.9 | 11.0 | 10.95 | 15.0 | 1.5 | 15.0 | 10.5 | 15.0 | 20.0 |
3.0-4.9 | 19.0 | 15.0 | 20.0 | ||||||
