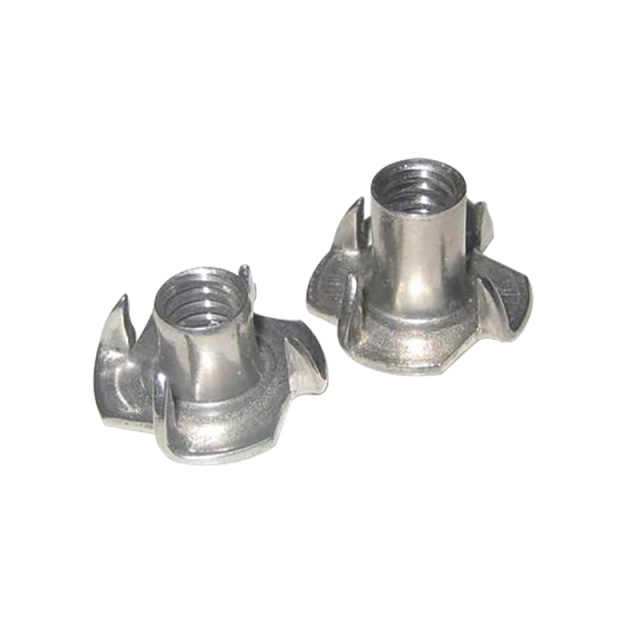

Material：Carbon Steel，SS304
Thread Size: M3-M12
surface finish: plain，galvanized，yellow-plated

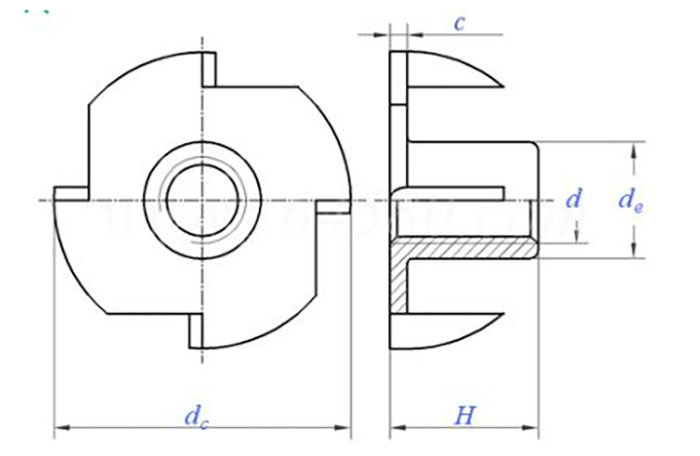

Technical summary
size | (mm) cocurrent | The (mm) | d (mm) | (mm) Pitch length | H(mm) |
M6 * 8 | 17.4-17.7 | 7.4 | 5.3 | 8.0-8.3 | 8.0-8.3 |
M6 * 9 | 17.4-17.7 | 7.4 | 5.3 | 9.0-9.3 | 9.0-9.3 |
M6 * 10 | 17.4-17.7 | 7.4 | 5.3 | 10.0-10.3 | 10.0-10.3 |
M6 * 12 | 17.4-17.7 | 7.9 | 5.3 | 6.0-6.5 | 12.0-12.3 |
M6 * 14 | 17.4-17.7 | 7.9 | 5.3 | 6.5-7.0 | 14.0-14.3 |
M6 * 16 | 17.4-17.7 | 7.9 | 5.3 | 7.0-7.5 | 16.0-16.3 |
M6 * 18 | 17.4-17.7 | 7.9 | 5.3 | 7.5-8.0 | 18.0-18.3 |
M6 * 20 | 17.4-17.7 | 7.9 | 5.3 | 8.0-8.5 | 20.0-20.3 |
M6 * 22 | 17.4-17.7 | 7.9 | 5.3 | 8.5-9.0 | 22.0-22.3 |
M6 * 24 | 17.4-17.7 | 7.9 | 5.3 | 9.0-9.5 | 24.0-24.3 |
1/4*12 | 17.4-17.7 | 7.9 | 5.3 | 6.0-6.5 | 12.0-12.3 |
1/4*14 | 17.4-17.7 | 7.9 | 5.3 | 6.5-7.0 | 14.0-14.3 |
1/4*16 | 17.4-17.7 | 7.9 | 5.3 | 7.0-7.5 | 16.0-16.3 |
1/4*18 | 17.4-17.7 | 7.9 | 5.3 | 7.5-8.0 | 18.0-18.3 |
1/4*20 | 17.4-17.7 | 7.9 | 5.3 | 8.0-8.5 | 20.0-20.3 |
1/4*22 | 17.4-17.7 | 7.9 | 5.3 | 8.5-9.0 | 22.0-22.3 |
1/4*24 | 17.4-17.7 | 7.9 | 5.3 | 9.0-9.5 | 24.0-24.3 |
M8 * 10 | 20.7-21.0 | 7.9 | 6.9 | 10.0-10.3 | 10.0-10.3 |
M8 * 11 | 20.7-21.0 | 7.9 | 6.9 | 11.0-11.3 | 11.0-11.3 |
M8 * 12 | 20.7-21.0 | 7.9 | 6.9 | 6.0-6.5 | 12.0-12.3 |
M8 * 14 | 20.7-21.0 | 7.9 | 6.9 | 6.5-7.0 | 14.0-14.3 |
M8 * 16 | 20.7-21.0 | 7.9 | 6.9 | 7.0-7.5 | 16.0-16.3 |
M8 * 18 | 20.7-21.0 | 7.9 | 6.9 | 7.5-8.0 | 18.0-18.3 |
M8 * 20 | 20.7-21.0 | 7.9 | 6.9 | 8.0-8.5 | 20.0-20.3 |
M8 * 22 | 20.7-21.0 | 7.9 | 6.9 | 8.5-9.0 | 22.0-22.3 |
M8 * 24 | 20.7-21.0 | 7.9 | 6.9 | 9.0-9.5 | 24.0-24.3 |
M8 * 26 | 20.7-21.0 | 7.9 | 6.9 | 9.5-10.0 | 26.0-26.3 |
