Description

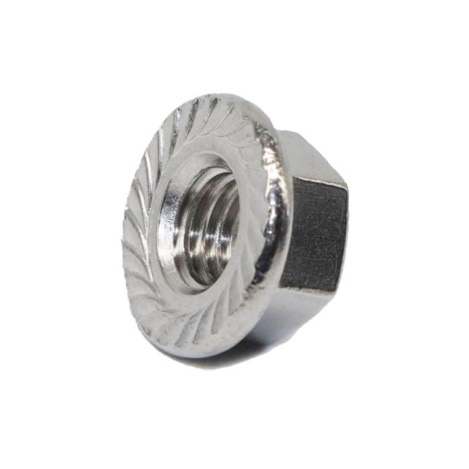

Type：hexagon flange nut
Material：Carbon Steel，SS304/316
Thread Size: M5-M20
surface finish: plain，black，galvanized，yellow-plated，H.D.G，Self Color
Grade: 4.，6，8，10

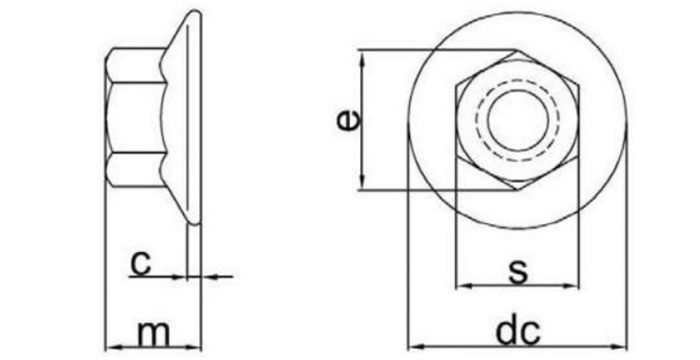

Technical summary
size | mix | S max | e mix |
max | C mix | mix | m max |
M5 | 7.78 | 8 | 8.79 | 11.8 | 1 | 4.7 | 5 |
M6 | 9.78 | 10 | 11.05 | 14.2 | 1.1 | 5.7 | 6 |
M8 | 12.73 | 13 | 14.38 | 17.9 | 1.2 | 7.6 | 8 |
M10 | 14.73 | 15 | 16.64 | 21.8 | 1.5 | 9.6 | 10 |
M12 | 17.73 | 18 | 20.03 | 26 | 1.8 | 11.6 | 12 |
M14 | 20.67 | 21 | 23.36 | 29.9 | 2.1 | 13.3 | 14 |
M16 | 23.67 | 24 | 26.75 | 34.5 | 2.4 | 15.3 | 16 |
M20 | 29.67 | 30 | 32.95 | 42.8 | 3 | 18.9 | 20 |
