Description

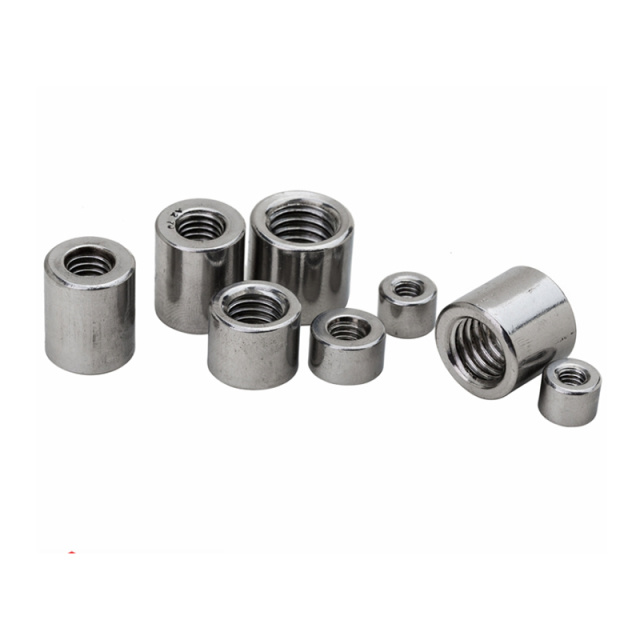

Type: Connecting nut
Material：Carbon Steel，SS304/316
Thread Size: M6-M36
surface finish: plain，black，galvanized，yellow-plated，H.D.G
Grade: 4，6，8，10...

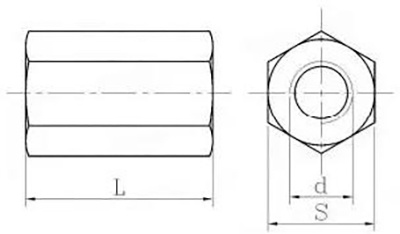

Technical summary
thread | M6 | MB | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | MB0 | MB6 |
d | |||||||||||||
P variable pitch
| 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 |
5 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 55 |
L | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 81 | 90 | 108 |
