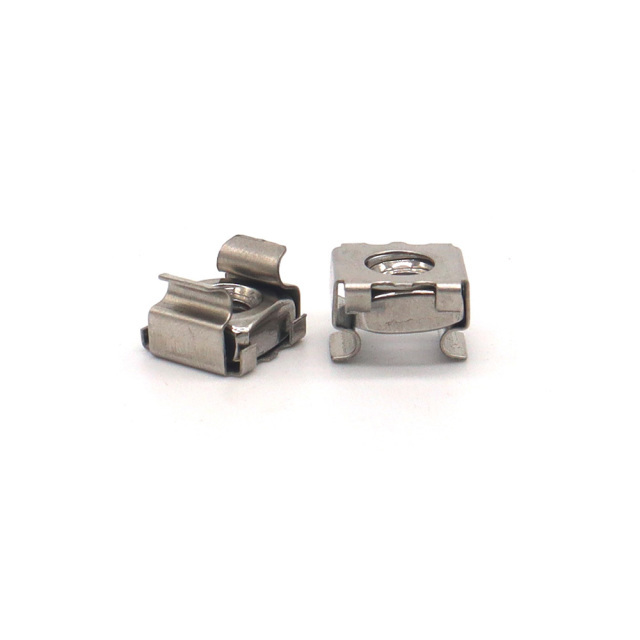

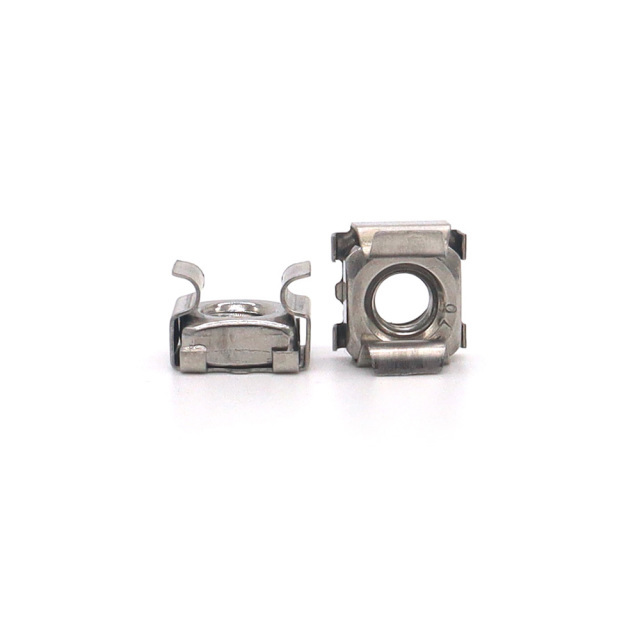

Description
Material：Carbon Steel，SS304
Thread Size: M4-M10
surface finish: plain，galvanized，yellow-plated
Grade: 4，5，6，8，10
Technical summary
D/d | A | B | L | H |
M4.0 | 12.5 | 0.7 | 7.35 | 9.35 |
M5.0 | 12.5 | 0.8 | 7.35 | 9.35 |
M6.0 | 12.5 | 1.0 | 7.35 | 9.35 |
M8.0 | 16.5 | 1.25 | 9.4 | 12.0 |
M10.0 | 16.5 | 1.5 | 9.4 | 12.0 |
