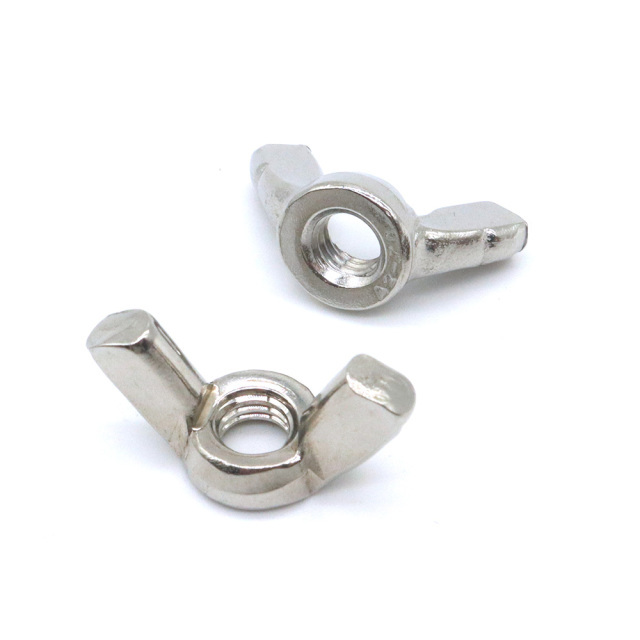

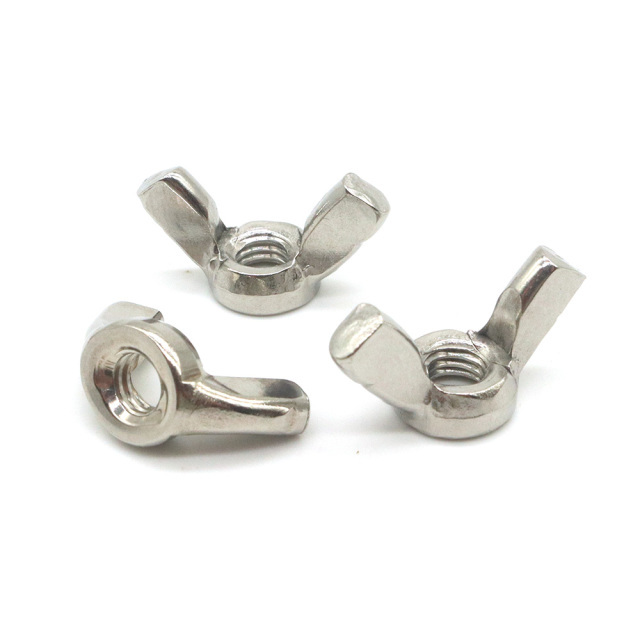

Description
Carbon：Carbon Steel，SS304/316
Thread Size: M3-M20
surface finish: plain，black，galvanized，yellow-plated，
Grade: 4，6，8，10

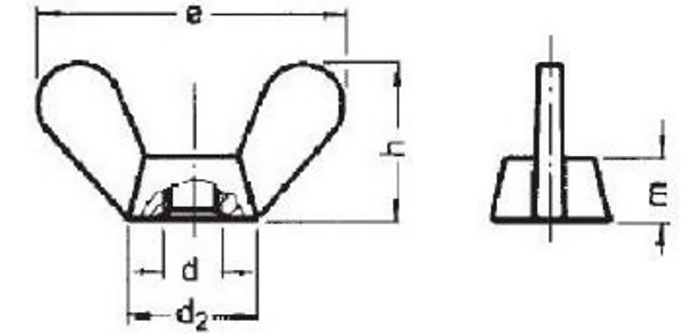

Technical summary
D thread | M 3** | M 4 | M 5 | M6 | M 8 | M 10 | M 12 | M 14*) | M 16 | M 20 |
dz max | 8 | 8 | 11 | 13 | 16 | 20 | 23 | 23 | 29 | 35 |
e max | 20 | 20 | 26 | 33 | 39 | 51 | 65 | 65 | 73 | 90 |
h max | 105 | 105 | 13 | 17 | 20 | 25 | 33,5 | 335 | 375 | 46,5 |
m max | 46 | 46 | 6,5 | 8 | 10 | 12 | 14 | 14 | 17 | 21 |
