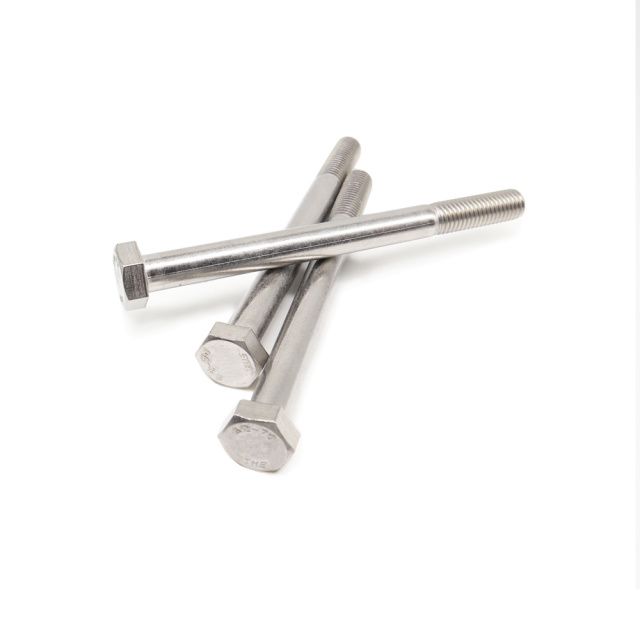

Description
Carbon： Steel，SS304/316
Type: Hexagon head, full/half thread
Thread Size: M3-M200
surface finish: plain，black，galvanized，copper plating,H,D,G,

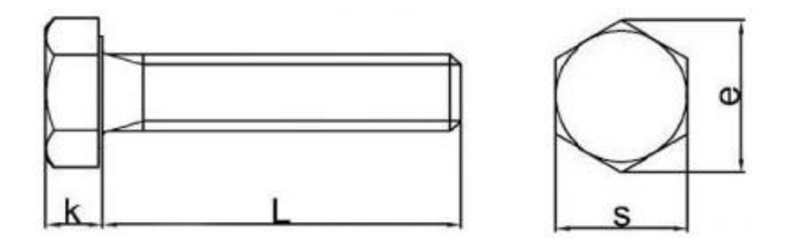

Specification
Size | S | e mix | k | ||
M3 | 5.32 | 5.5 | 6.01 | 1.88 | 2.12 |
M4 | 6.78 | 7 | 7.66 | 2.68 | 2.92 |
M5 | 7.78 | 8 | 8.79 | 3.35 | 3.65 |
M6 | 9.78 | 10 | 11.05 | 3.85 | 4.15 |
(M7) | 10.73 | 11 | 12.12 | 4.65 | 4.95 |
M8 | 12.73 | 13 | 14.38 | 5.15 | 5.45 |
M10 | 16.73 | 17 | 18.9 | 6.22 | 6.56 |
M12 | 18.67 | 19 | 21.1 | 7.32 | 7.68 |
(M14) | 21.67 | 22 | 24.49 | 8.62 | 8.98 |
M16 | 23.67 | 24 | 26.75 | 9.82 | 10.18 |
(M18) | 26.67 | 27 | 30.14 | 11.28 | 11.72 |
M20 | 29.67 | 30 | 33.53 | 12.28 | 12.72 |
(M22) | 31.61 | 32 | 35.72 | 13.78 | 14.22 |
M24 | 35.38 | 36 | 39.98 | 14.78 | 15.22 |
(M27) | 40 | 41 | 45.2 | 16.65 | 17.35 |
M30 | 45 | 46 | 50.85 | 18.28 | 19.12 |
(M33) | 49 | 50 | 55.37 | 20.58 | 21.42 |
M36 | 53.38 | 55 | 60.79 | 22.08 | 22.92 |
(M39) | 58.8 | 60 | 66.44 | 24.58 | 25.42 |
