Description

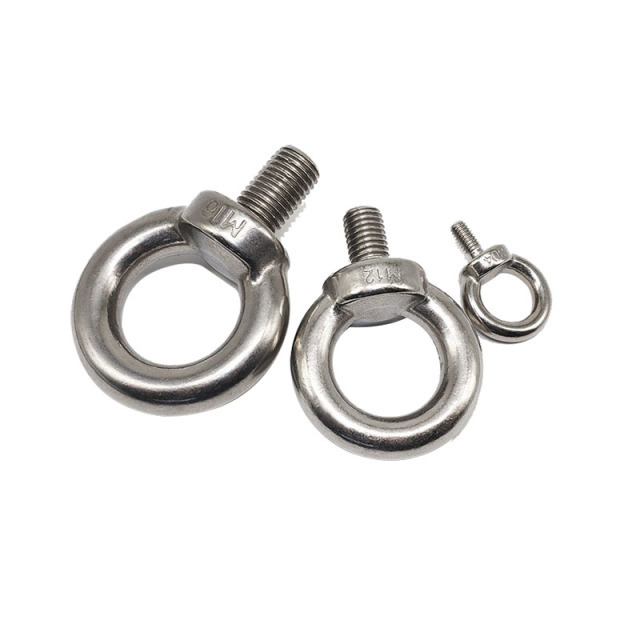

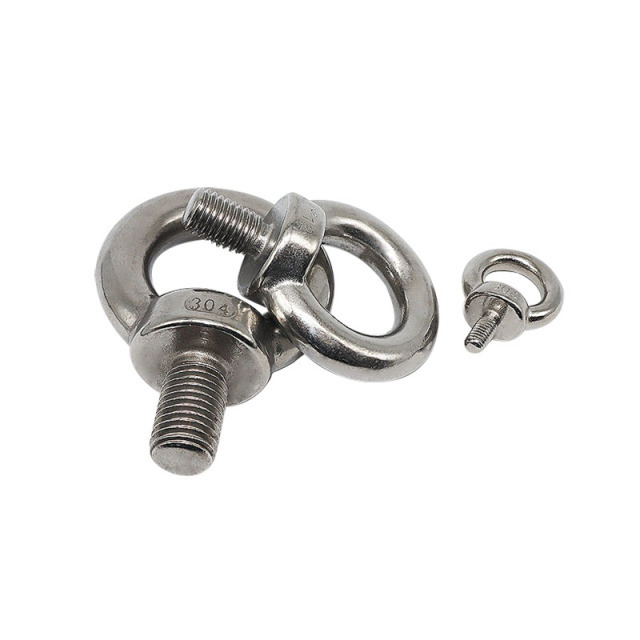

eye bolt
Carbon： Steel，SS304/316
Thread Size: M6-M36
surface finish: plain，black，galvanized，yellow-plated，H.D.G.
Grade: 4.8，8.8，10.9，12.9，A2，A4
technical summary
d | d2 | d3 | d4 | h | e |
M6 | 16 | 27 | 16 | 31 | 6 |
M8 | 20 | 36 | 20 | 36 | 6 |
M10 | 25 | 45 | 25 | 45 | 8 |
M12 | 30 | 54 | 30 | 53 | 10 |
M16 | 35 | 63 | 35 | 62 | 12 |
M20 | 40 | 72 | 40 | 71 | 14 |
M24 | 50 | 90 | 50 | 90 | 18 |
M30 | 108 | 60 | 109 | 22 | |
M36 | 75 | 126 | 70 | 128 | 26 |
All dimension units: millimeters（mm） | |||||
